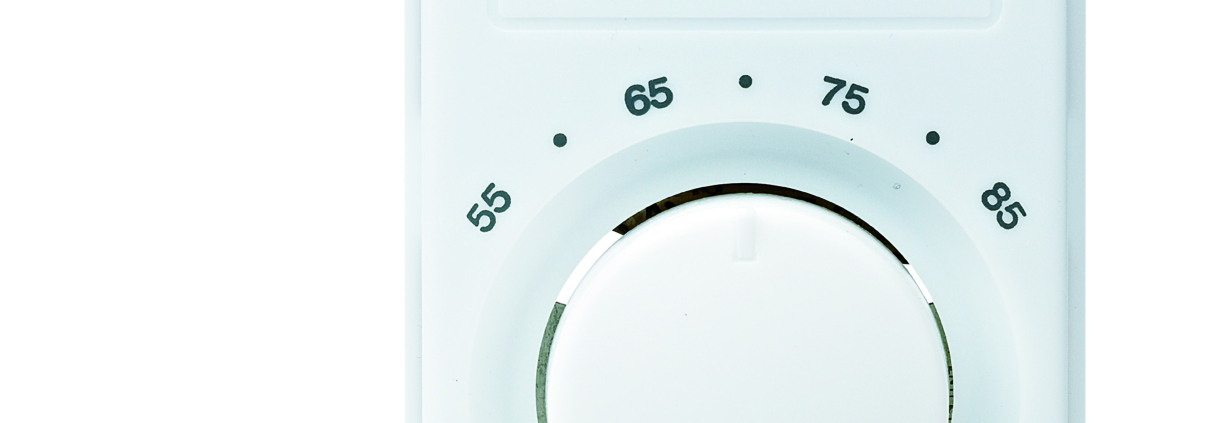

800 Series Line Voltage Thermostats

Brand Name Robertshaw

The Robertshaw® 800 Series Line Voltage Thermostats are universal replacements for many other brands and can be used to retrofit most existing electric heat thermostats. With models for heating that include single-line break and double-line break as well as a single-line break cooling model, there is one for every application.

Características y ventajas

Convenient temperature display - View comfort level at-a-glance.
Bimetal temperature sensing - For improved thermal performance.
Mercury-free - No leveling or special disposal required.
J-Box compatible - Not only will it meet code, but it speeds up installation.
Positive-off switch - Assured shutdown of HVAC system.
Universal replacement - Can retrofit most existing electric heat thermostats.

Especificaciones

Atributo	Valor
Aplicación en serie	Line Voltage
Application	Calefacción
Electrical Rating	120/240/277V AC, Non-Inductive, 1/4 HP @ 120V AC, 1/3 HP @ 240V AC, 125VA Pilot Duty
Interruptor	SPST
Temperatura	50 °F to 90 °F (10 °C to 32 °C)+/- 2 °F (+/- 1 °C)
